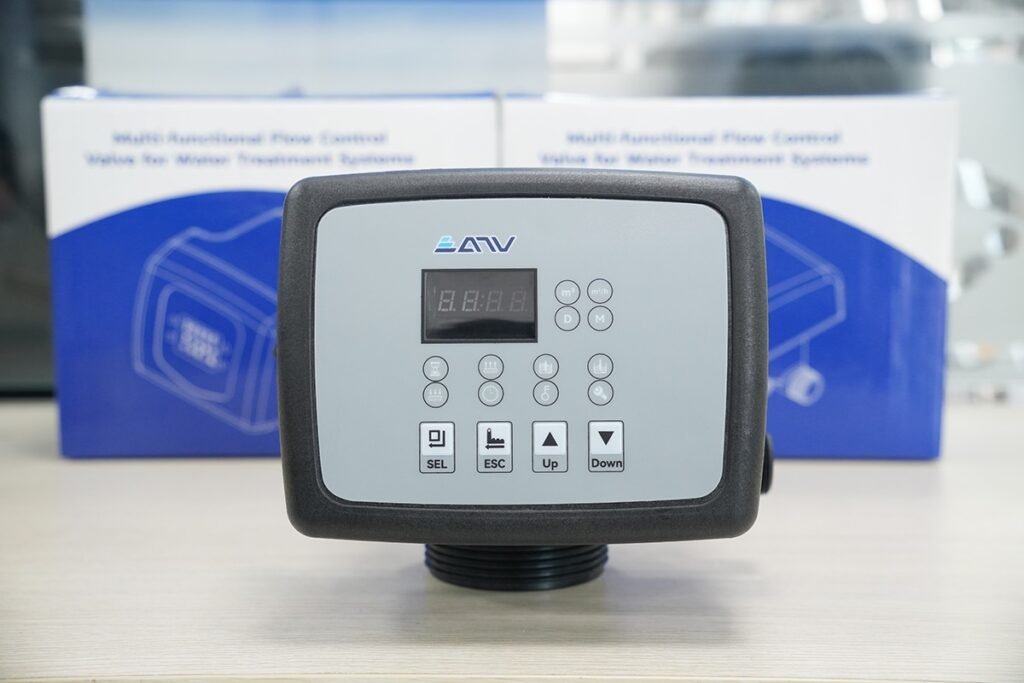

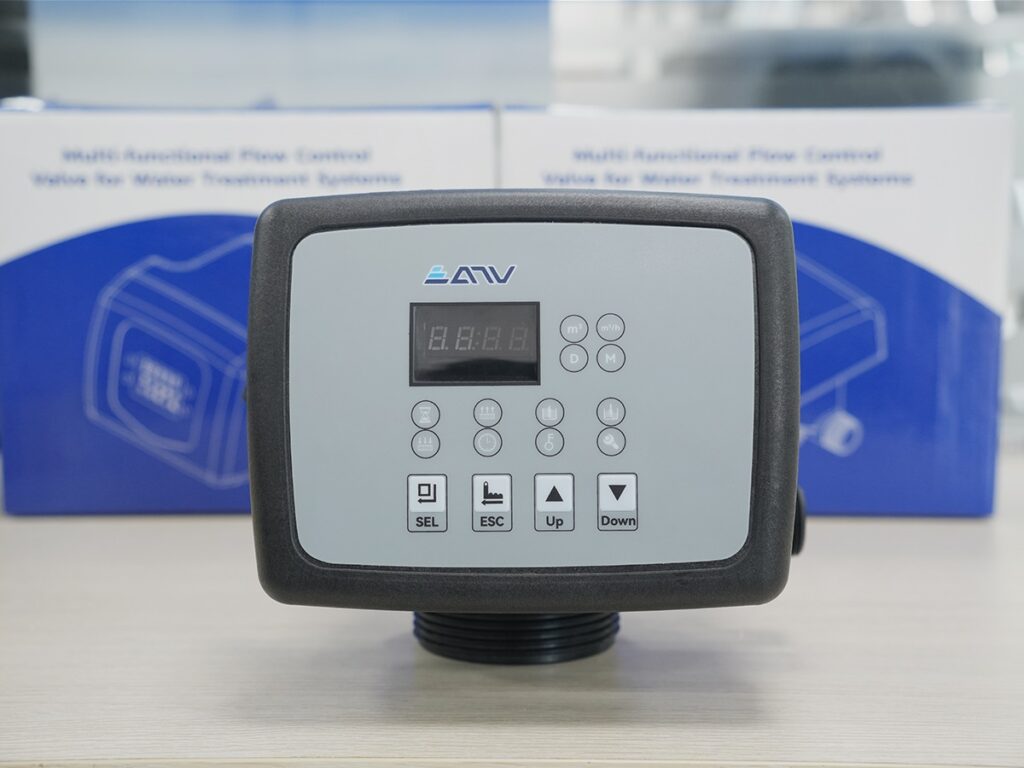

ATV is a global manufacturer of water treatment products. With its Smart Automatic Valve technology, the ATV ES Series Automatic Softening Valves are engineered to deliver high performance and flexible control for water softening systems — especially in environments that demand stability and precision, such as R/O pre-treatment systems, residential softeners, boiler feedwater systems, and ion exchange applications.
Introducing the ES021 and ES023 Models
The ES Series stands out with two main models designed for different regeneration strategies:
- ES021 – Offers time-based regeneration, programmable by day or hour.
- ES023 – A flow-meter model, allowing regeneration based on actual water usage.
Both ES021 and ES023 share the same core specifications inlet/Outlet: 3/4″ F, drain Port: 1/2″ M, base: 2.5″ BNPSM, brine Port: 3/8″ M, riser Tube: 1.05″ OD, flow Rate: 3 m³/h, tank Compatibility: Diameter from 6″ to 12″.
Smart Regeneration by Time and Flow
The ES Series provides flexible regeneration options that optimize salt usage and maximize ion exchange efficiency.
Time-Based Regeneration (ES021)
The ES021 Automatic Softening Valve is a simple yet highly effective model, ideal for residential softeners, R/O pre-treatment, and boiler or ion exchange systems where water consumption patterns remain relatively stable. This model performs regeneration at preset intervals, which can be precisely programmed by day or by hour, ensuring consistent operation and reliable system performance.
Flow-Based Regeneration (ES023)
The flow-meter model (ES023) supports up to four regeneration modes, offering enhanced flexibility:
- A-01: Single Flow Delayed – Regenerates when the set volume is reached but delayed until the programmed time.
- A-02: Single Flow Immediate – Regenerates immediately once the target flow is reached.
- A-03: Smart Flow Delayed – A smart regeneration mode that combines predictive operation and timing.
- A-04: Smart Flow Immediate – Another intelligent mode for real-time regeneration control.
Additionally, ATV automatic valves include exclusive features such as automatic water shut-off when the system reaches the preset media replacement cycle, preventing system overload or contamination.
Data Storage and Safety Alerts
To ensure continuous operation and protect critical system data, the ES Series valves come equipped with smart data management and alert functions:
- Power Loss Warning and Data Reset: The valve stores configuration data for up to 3 days during power outages. If power is lost for more than 3 days, the valve issues a warning prompting the user to reconfigure settings.
- Maintenance and Fault Alerts: The valve automatically notifies users of scheduled maintenance and features an audible alarm for functional errors. It also tracks and records the exact number of backwash cycles for performance monitoring.

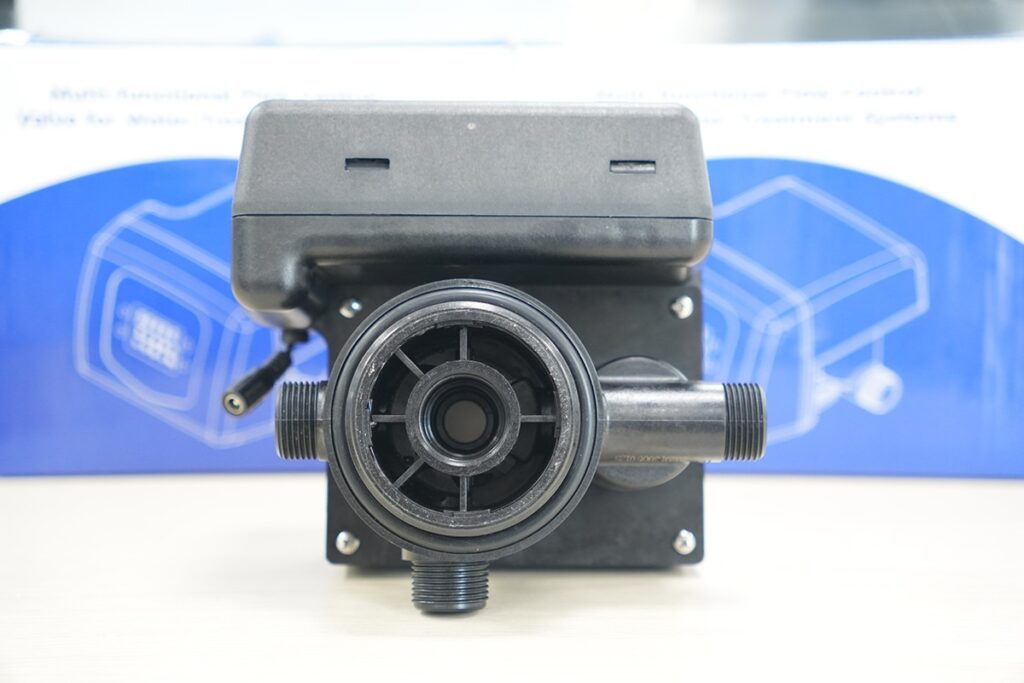

Multi-Valve Connection (Interlock System)
The ES Series includes an interlock port, allowing multi-valve synchronization and control, enhancing automation for large-scale industrial systems where redundancy and sequencing are essential. The ATV ES Series represents the next generation of Smart Automatic Control Valves from ATV – Global Manufacturer of Water Treatment Products. This series delivers precise control, enhanced operational efficiency, and superior system reliability for industrial and commercial water treatment systems.
With flexible time-based (ES021) and flow-based (ES023) regeneration options — including Smart Regeneration Modes (A-03, A-04) — the ES Series optimizes ion exchange performance and reduces operational costs. Combined with automatic shut-off, maintenance alerts, and data retention features, the ATV ES valves ensure safe, stable, and intelligent water softening system operation.
