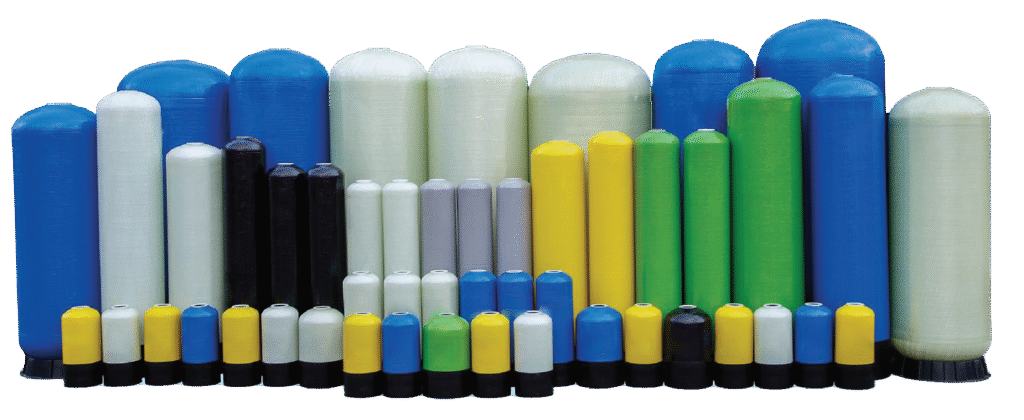

Composite FRP Tanks
Superior Strength, Unmatched Performance
Aquatechvina’s FRP tank is a core component of any water treatment system, widely used in residential & industrial filtration, water softening, and ultra-pure water applications. We are steadfast in delivering high-quality, superior performance FRP tanks with a commitment to comprehensive product improvement.
Outstanding Features of FRP Tanks
A Detailed Look: Precision Manufacturing
Operating Parameters
Product Description
Technical Specifications Comparison
Browse the full range of our FRP Tank models. For detailed drawings, volumes, and weights, please download the complete technical datasheet.
| No. | Size (Inches) | Top Opening | Bottom Opening | Volume (Liter) | Volume (Gallon) | Base | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5x13 | 2.5" | 3.1 | 0.8 | Standard | 335±6 | Φ134 | Φ130 | ||
| 2 | 5x17 | 2.5" | 4.3 | 1.1 | Standard | 437±6 | Φ134 | Φ130 | ||
| 3 | 5x24 | 2.5" | 6.4 | 1.7 | Standard | 617±6 | Φ134 | Φ130 | ||
| 4 | 6x13 | 2.5" | 4.7 | 1.2 | Standard | 329±3 | Φ164 | Φ159 | ||
| 5 | 6x17 | 2.5" | 6.5 | 1.7 | Standard | 431±3 | Φ164 | Φ159 | ||
| 6 | 6x18 | 2.5" | 7.0 | 1.8 | Standard | 457±3 | Φ164 | Φ159 | ||
| 7 | 6x24 | 2.5" | 9.8 | 2.6 | Standard | 611±3 | Φ164 | Φ159 | ||
| 8 | 6x35 | 2.5" | 14.8 | 3.9 | Standard | 891±3 | Φ164 | Φ159 | ||
| 9 | 7x13 | 2.5" | 6.1 | 1.6 | Standard | 335±6 | Φ186 | Φ180 | ||
| 10 | 7x17 | 2.5" | 8.4 | 2.2 | Standard | 435±6 | Φ186 | Φ180 | ||
| 11 | 7x24 | 2.5" | 12.4 | 3.3 | Standard | 605±6 | Φ186 | Φ180 | ||
| 12 | 7x30 | 2.5" | 16 | 4.2 | Standard | 770±6 | Φ186 | Φ180 | ||
| 13 | 7x35 | 2.5" | 18.8 | 5.0 | Standard | 892±6 | Φ186 | Φ180 | ||
| 14 | 7x44 | 2.5" | 24 | 6.3 | Standard | 1120±6 | Φ186 | Φ180 | ||
| 15 | 8x13 | 2.5" | 7.8 | 2.1 | Standard | 332±6 | Φ212 | Φ207 | ||
| 16 | 8x17 | 2.5" | 10.8 | 2.9 | Standard | 435±6 | Φ212 | Φ207 | ||
| 17 | 8x19 | 2.5" | 12.3 | 3.2 | Standard | 484±6 | Φ212 | Φ207 | ||
| 18 | 8x24 | 2.5" | 16.4 | 4.3 | Standard | 620±6 | Φ212 | Φ207 | ||
| 19 | 8x30 | 2.5" | 20.8 | 5.5 | Standard | 768±6 | Φ212 | Φ207 | ||
| 20 | 8x35 | 2.5" | 24.5 | 6.5 | Standard | 892±6 | Φ212 | Φ207 | ||
| 21 | 8x44 | 2.5" | 31.2 | 8.2 | Standard | 1125±6 | Φ212 | Φ207 | ||
| 22 | 9x17 | 2.5" | 13.8 | 3.6 | Standard | 450±6 | Φ235 | Φ231 | ||
| 23 | 9x24 | 2.5" | 20.5 | 5.4 | Standard | 617±6 | Φ235 | Φ231 | ||
| 24 | 9x30 | 2.5" | 26.9 | 7.1 | Standard | 770±6 | Φ235 | Φ231 | ||
| 25 | 9x35 | 2.5" | 32.1 | 8.5 | Standard | 895±6 | Φ235 | Φ231 | ||
| 26 | 9x42 | 2.5" | 38.4 | 10.1 | Standard | 1070±6 | Φ235 | Φ231 | ||
| 27 | 9x48 | 2.5" | 44.4 | 11.7 | Standard | 1221±6 | Φ235 | Φ231 | ||
| 28 | 10x17 | 2.5" | 16.7 | 4.4 | Standard | 440±6 | Φ261 | Φ258 | ||
| 29 | 10x19 | 2.5" | 19.3 | 5.1 | Standard | 479±6 | Φ261 | Φ258 | ||
| 30 | 10x24 | 2.5" | 25.2 | 6.7 | Standard | 605±6 | Φ261 | Φ258 | ||
| 31 | 10x30 | 2.5" | 33.0 | 8.7 | Standard | 775±6 | Φ261 | Φ258 | ||
| 32 | 10x30 | 4"-8UN | 33.0 | 8.7 | Standard | 775±6 | Φ261 | Φ258 | ||
| 33 | 10x35 | 2.5" | 39.4 | 10.4 | Standard | 896±6 | Φ261 | Φ258 | ||
| 34 | 10x35 | 4"-8UN | 39.4 | 10.4 | Standard | 900±6 | Φ261 | Φ258 | ||
| 35 | 10x44 | 2.5" | 51.2 | 13.5 | Standard | 1128±6 | Φ261 | Φ258 | ||
| 36 | 10x44 | 4"-8UN | 51.2 | 13.5 | Standard | 1130±6 | Φ261 | Φ258 | ||
| 37 | 10x47 | 2.5" | 54.1 | 14.3 | Standard | 1190±6 | Φ261 | Φ258 | ||
| 38 | 10x54 | 2.5" | 63.3 | 16.7 | Standard | 1388±6 | Φ261 | Φ258 | ||
| 39 | 10x54 | 4"-8UN | 63.3 | 16.7 | Standard | 1388±6 | Φ268 | Φ258 | ||
| 40 | 12x48 | 2.5" | 77.6 | 20.5 | Standard | 1227±6 | Φ311 | Φ306 | ||
| 41 | 12x52 | 2.5" | 84.5 | 22.3 | Standard | 1322±6 | Φ311 | Φ306 | ||
| 42 | 12x65 | 2.5" | 107.2 | 28.3 | Standard | 1652±6 | Φ311 | Φ306 | ||
| 43 | 13x44 | 2.5" | 82.3 | 21.7 | Standard | 1112±6 | Φ336 | Φ332 | ||
| 44 | 13x44 | 4"-8UN | 82.3 | 21.7 | Standard | 1112±6 | Φ336 | Φ334 | ||
| 45 | 13x54 | 2.5" | 103 | 27.2 | Standard | 1369±6 | Φ336 | Φ332 | ||
| 46 | 13x54 | 4"-8UN | 103 | 27.2 | Standard | 1375±6 | Φ336 | Φ334 | ||
| 47 | 14x47 | 2.5" | 99.7 | 26.3 | Standard | 1185±6 | Φ363 | Φ358 | ||
| 48 | 14x47 | 4"-8UN | 99.7 | 26.3 | Standard | 1197±6 | Φ363 | Φ360 | ||
| 49 | 14x52 | 2.5" | 111.6 | 29.5 | Standard | 1315±6 | Φ363 | Φ358 | ||
| 50 | 14x52 | 4"-8UN | 111.6 | 29.5 | Standard | 1325±6 | Φ363 | Φ360 | ||
| 51 | 14x65 | 2.5" | 142.4 | 37.6 | Standard | 1645±6 | Φ363 | Φ358 | ||
| 52 | 14x65 | 4"-8UN | 142.4 | 37.6 | Standard | 1657±6 | Φ363 | Φ360 | ||
| 53 | 14x65 | 4"-8UN | 4"-8UN | 142.4 | 37.6 | Tri-pod | 1856±6 | Φ360 | Φ360 | 230 |
| 54 | 16x52 | 2.5" | 147.4 | 38.9 | Standard | 1312±6 | Φ414 | Φ409 | ||
| 55 | 16x52 | 4"-8UN | 147.4 | 38.9 | Standard | 1312±6 | Φ414 | Φ410 | ||
| 56 | 16x65 | 2.5" | 188.2 | 49.7 | Standard | 1644±6 | Φ414 | Φ409 | ||
| 57 | 16x65 | 4"-8UN | 188.2 | 49.7 | Standard | 1648±6 | Φ414 | Φ410 | ||
| 58 | 16x65 | 4"-8UN | 4"-8UN | 188.2 | 49.7 | Tri-pod | 1880±6 | Φ410 | Φ410 | 250 |
| 59 | 18x36 | 4"-8UN | 122.6 | 32.4 | Standard | 940±10 | Φ450 | Φ464 | ||
| 60 | 18x53 | 4"-8UN | 189 | 49.9 | Standard | 1366±10 | Φ450 | Φ464 | ||
| 61 | 18x65 | 4"-8UN | 236.6 | 62.5 | Standard | 1670±10 | Φ450 | Φ464 | ||
| 62 | 18x65 | 4"-8UN | 4"-8UN | 236.6 | 62.5 | Tri-pod | 1950±10 | Φ460 | Φ464 | 320 |
| 63 | 18x68 | 6"-FLG | 263.8 | 69.7 | Standard | 1850±25 | Φ450 | Φ469 | ||
| 64 | 18x68 | 6"-FLG | 6"-FLG | 263.8 | 69.7 | Tri-pod | 2120±25 | Φ460 | Φ469 | 250 |
| 65 | 21x36 | 4"-8UN | 165.6 | 43.8 | Standard | 958±10 | Φ532 | Φ540 | ||
| 66 | 21x53 | 4"-8UN | 258 | 68.2 | Standard | 1390±10 | Φ532 | Φ540 | ||
| 67 | 21x62 | 4"-8UN | 307.2 | 81.2 | Standard | 1620±10 | Φ532 | Φ540 | ||
| 68 | 21x62 | 4"-8UN | 4"-8UN | 307.2 | 81.2 | Tri-pod | 1890±10 | Φ550 | Φ540 | 330 |
| 69 | 21x66 | 6"-FLG | 321.6 | 85.0 | Standard | 1745±25 | Φ530 | Φ544 | ||
| 70 | 21x66 | 6"-FLG | 6"-FLG | 321.6 | 85.0 | Tri-pod | 2010±25 | Φ550 | Φ544 | 260 |
| 71 | 24x65 | 4"-8UN | 423.4 | 111.9 | Standard | 1720±10 | Φ612 | Φ615 | ||
| 72 | 24x65 | 4"-8UN | 4"-8UN | 423.4 | 111.9 | Tri-pod | 1916±10 | Φ610 | Φ615 | 245 |
| 73 | 24x72 | 4"-8UN | 478.2 | 126.3 | Standard | 1900±10 | Φ612 | Φ615 | ||
| 74 | 24x72 | 4"-8UN | 4"-8UN | 478.2 | 126.3 | Tri-pod | 2090±10 | Φ610 | Φ615 | 245 |
| 75 | 24x75 | 6"-FLG | 459.7 | 121.5 | Standard | 1905±25 | Φ612 | Φ617 | ||
| 76 | 24x75 | 6"-FLG | 6"-FLG | 459.7 | 121.5 | Tri-pod | 2180±25 | Φ630 | Φ617 | 265 |
| 77 | 30x65 | 4"-8UN | 632.5 | 167.1 | Standard | 1710±10 | Φ752 | Φ767 | ||
| 78 | 30x65 | 4"-8UN | 4"-8UN | 632.5 | 167.1 | Tri-pod | 1897±10 | Φ762 | Φ767 | 235 |
| 79 | 30x72 | 4"-8UN | 715.5 | 189.0 | Standard | 1890±10 | Φ752 | Φ767 | ||
| 80 | 30x72 | 4"-8UN | 4"-8UN | 715.5 | 189.0 | Tri-pod | 2077±10 | Φ762 | Φ767 | 235 |
| 81 | 30x72 | 6"-FLG | 6"-FLG | 735 | 194.2 | Tri-pod | 2245±25 | Φ780 | Φ767 | 265 |
| 82 | 30x78 | 6"-FLG | 780.8 | 206.3 | Standard | 2060±25 | Φ752 | Φ772 | ||
| 83 | 36x65 | 4"-8UN | 895.1 | 236.5 | Standard | 1785±10 | Φ900 | Φ920 | ||
| 84 | 36x65 | 4"-8UN | 4"-8UN | 895.1 | 236.5 | Tri-pod | 2010±10 | Φ930 | Φ920 | 350 |
| 85 | 36x72 | 4"-8UN | 1008 | 266.3 | Standard | 1965±10 | Φ900 | Φ920 | ||
| 86 | 36x72 | 4"-8UN | 4"-8UN | 1008 | 266.3 | Tri-pod | 2190±10 | Φ930 | Φ920 | 350 |
| 87 | 36x72 | 6"-FLG | 6"-FLG | 1036.4 | 273.8 | Tri-pod | 2270±25 | Φ920 | Φ923 | 275 |
| 88 | 36x78 | 6"-FLG | 1136.4 | 300.2 | Standard | 2170±25 | Ф910 | Φ923 | ||
| 89 | 42x63 | 6"-FLG | 6"-FLG | 1224 | 323.4 | Tri-pod | 2145±25 | Φ1070 | Φ1085 | 365 |
| 90 | 42x72 | 6"-FLG | 6"-FLG | 1425 | 376.5 | Tri-pod | 2375±25 | Φ1070 | Φ1085 | 365 |
| 91 | 48x72 | 6"-FLG | 6"-FLG | 1746.3 | 461.4 | Tri-pod | 2365±25 | Φ1180 | Φ1220 | 365 |
| 92 | 63x67 | 6"-FLG | 6"-FLG | 2623 | 693.0 | Tri-pod | 2095±25 | Φ1590 | Φ1620 | 330 |
| 93 | 63x86 | 6"-FLG | 6"-FLG | 3296 | 838.8 | Tri-pod | 2460±25 | Φ1590 | Φ1620 | 330 |
NOTE: A flexible connector must be installed between hard piping and tank openings. An adequate vacuum breaker must be installed between tank inlet and any valve. Failure to do so will void the warranty.
Empower Your Water System with Aquatechvina!
Contact our sales team for a custom quote or download the full technical specifications for your project.
