Manual Filter Valves
Reliable Control, Simplified Operation.
ATV’s Manual Filter Valves are engineered for precision and durability. Featuring a tightly sealed gasket structure and simple manual regeneration, they are the ideal solution for civil water filtration and pre-treatment systems.
Structural Features
Applications
A Detailed Look: Engineering & Design

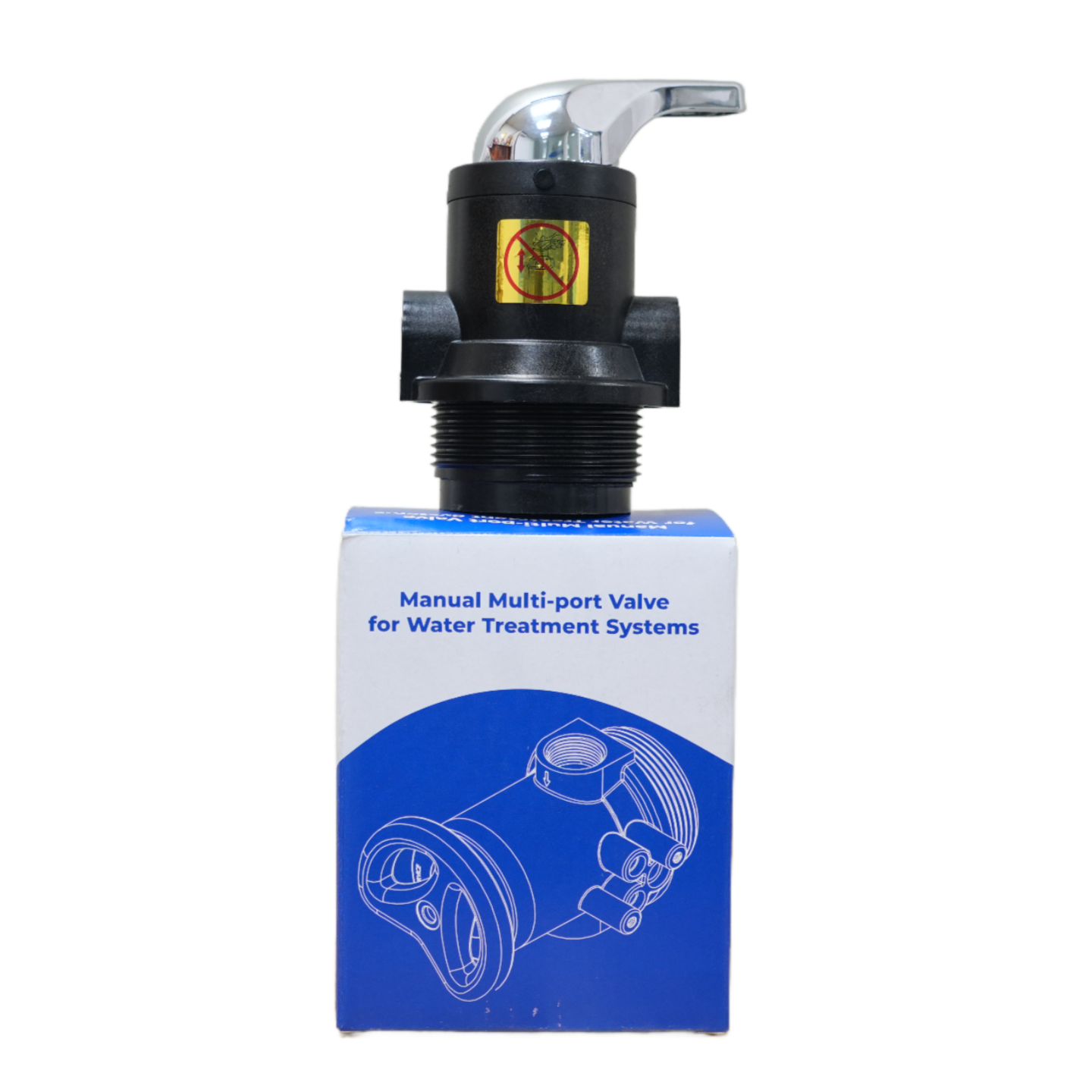

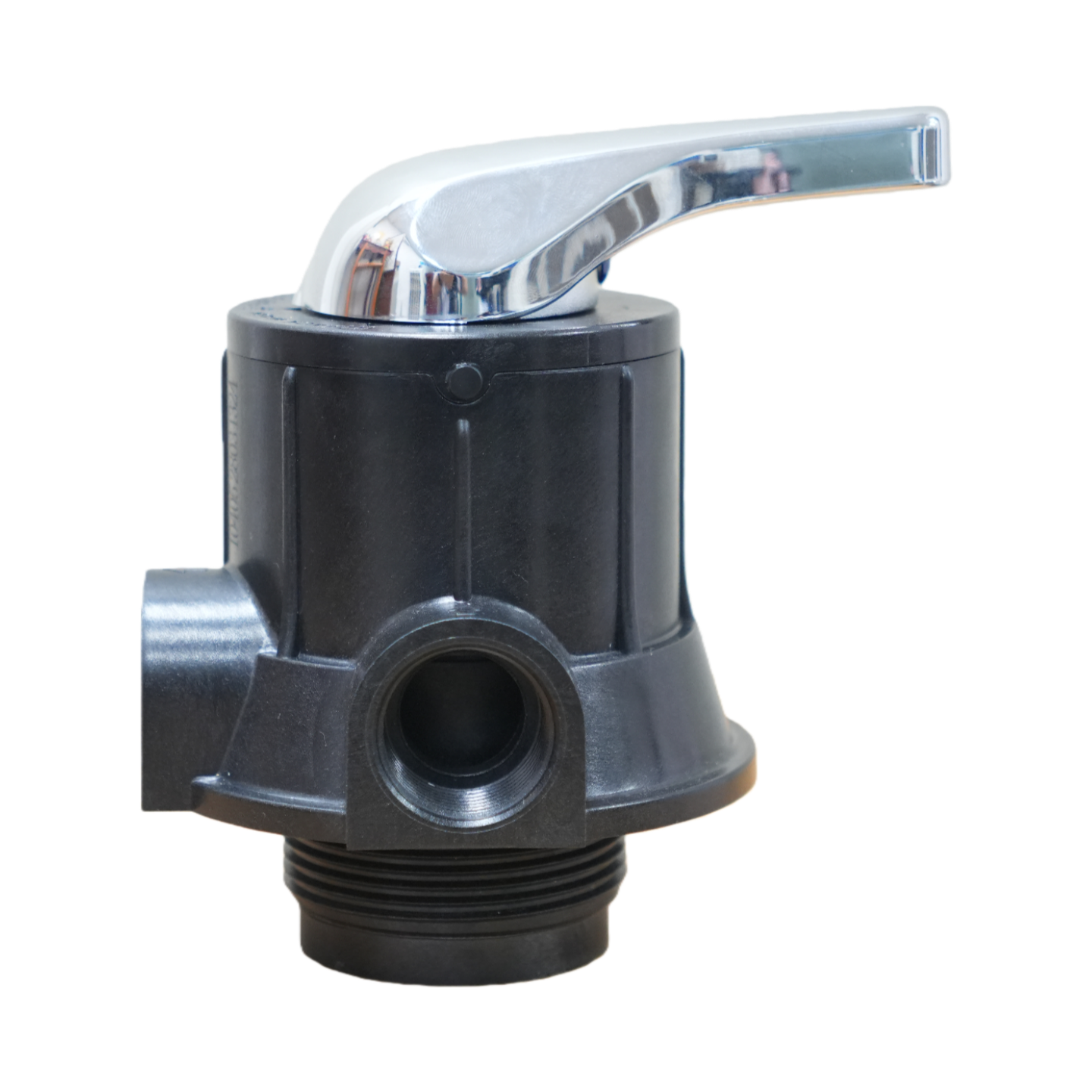

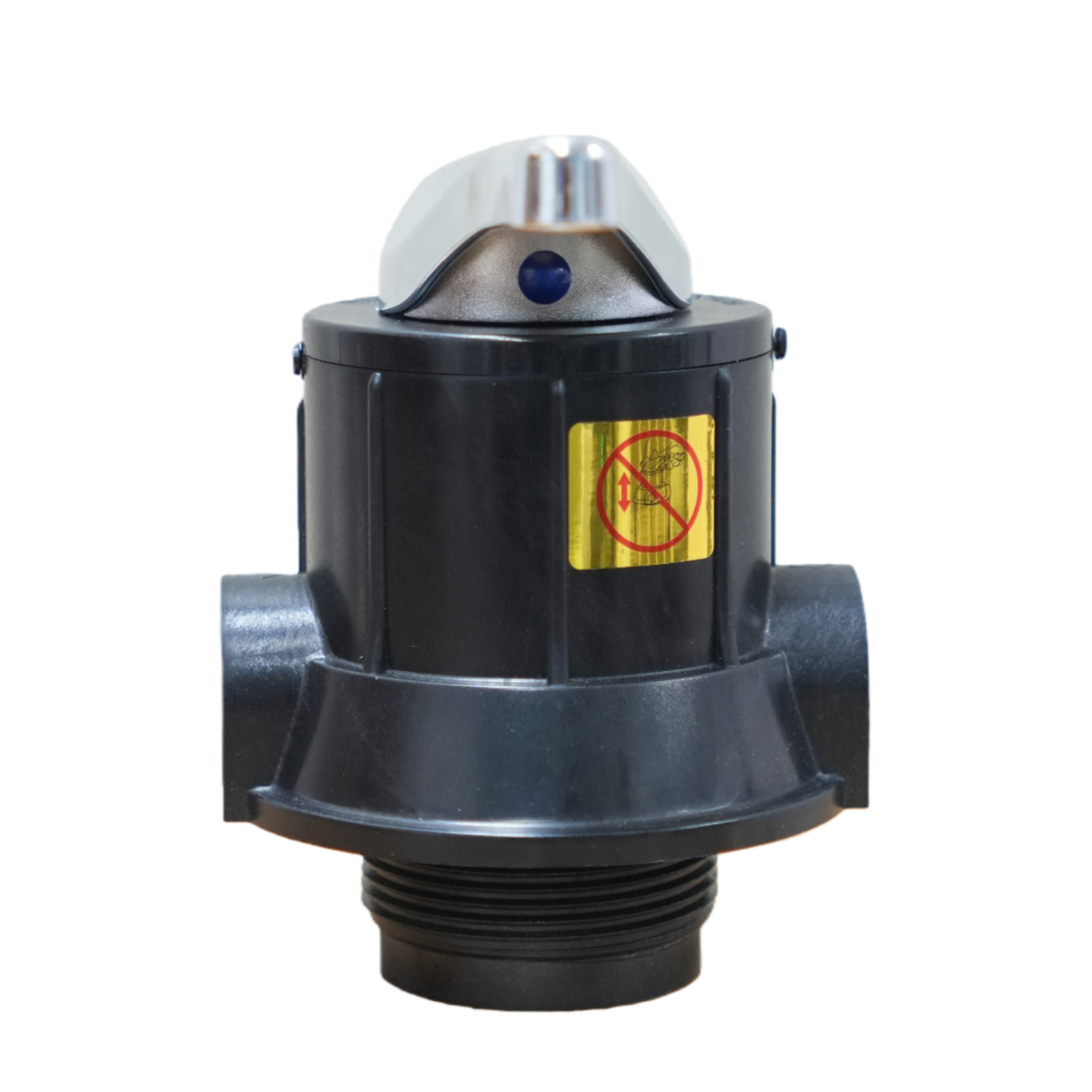

Model: 1F02B

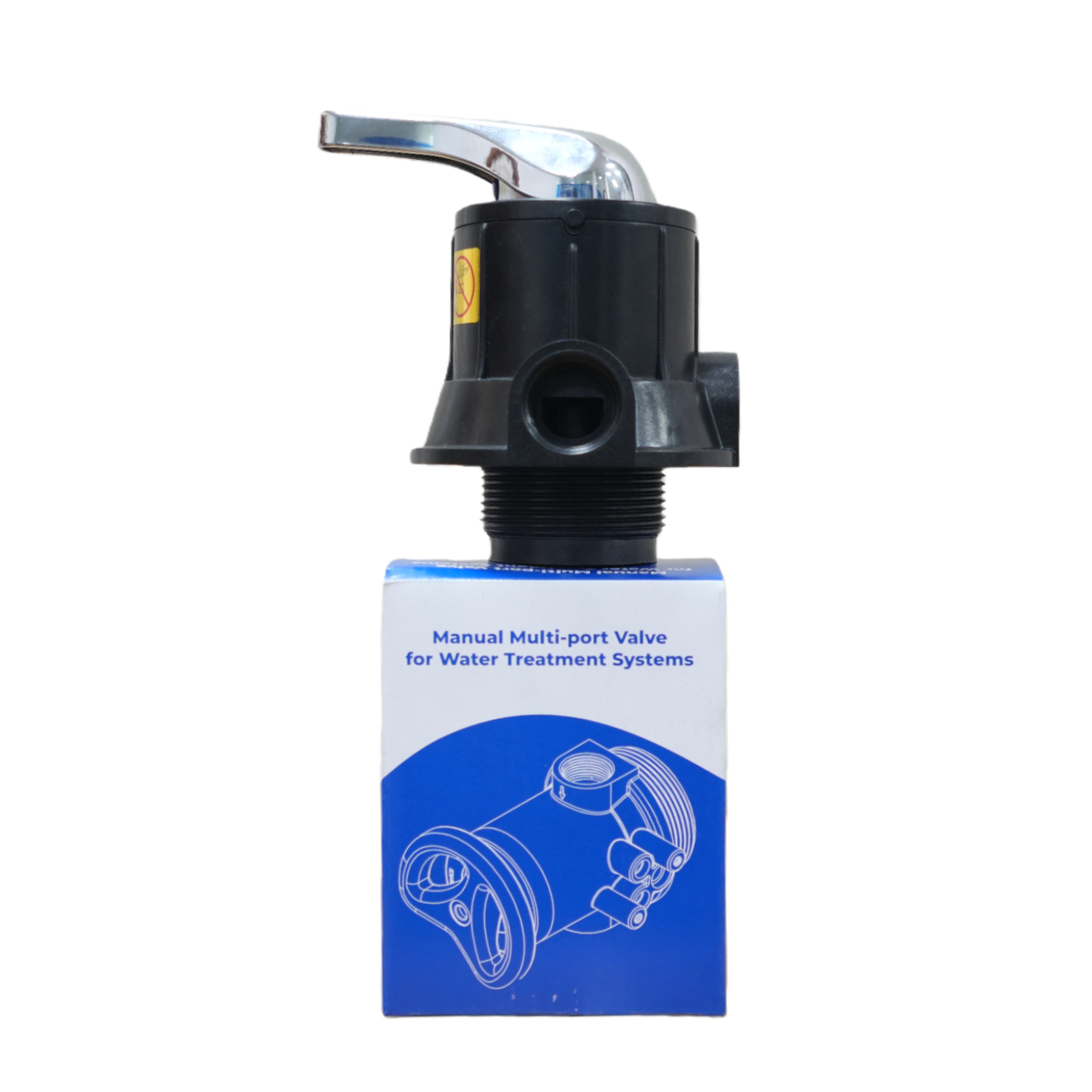

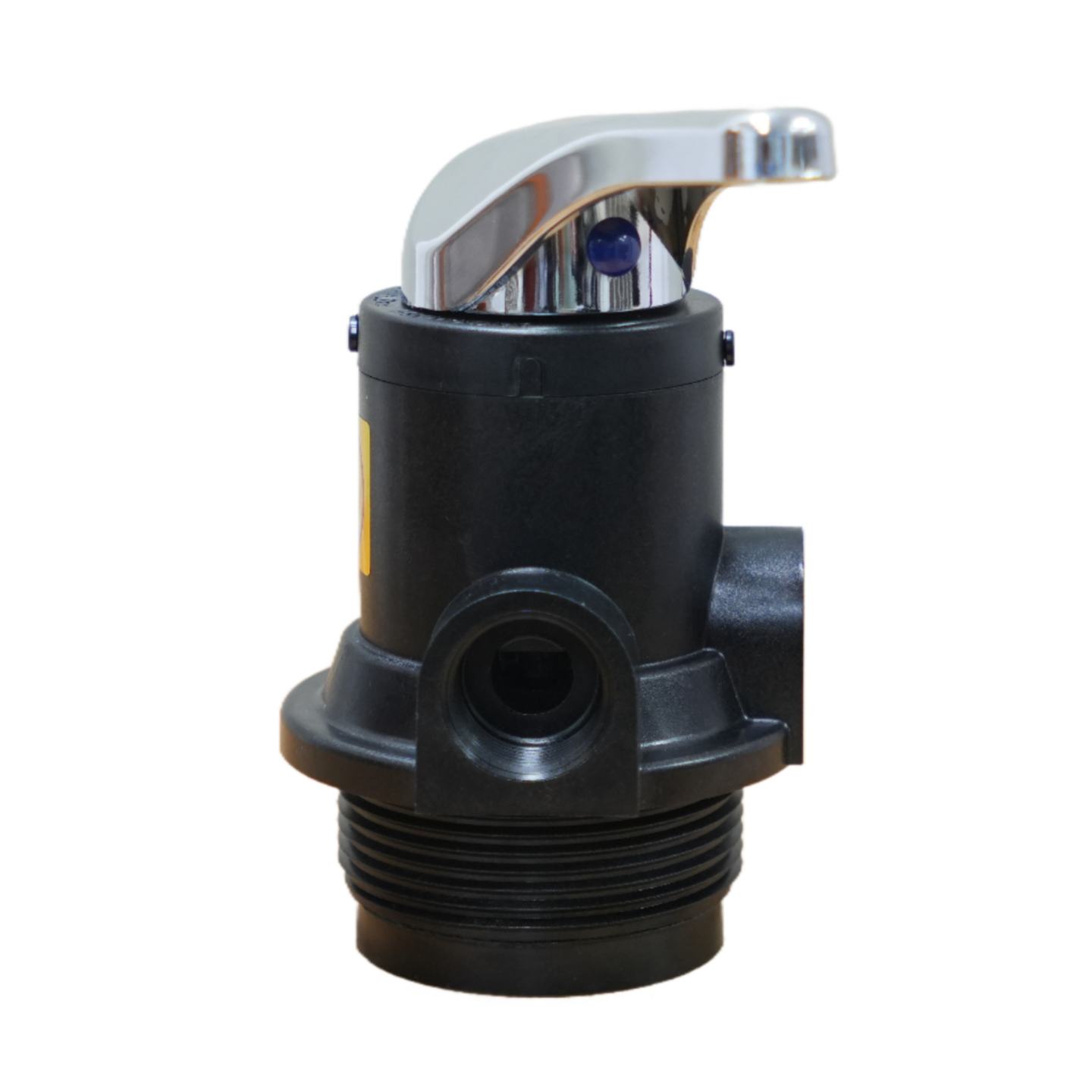

Model: 1F04B
Technical Specifications Comparison
Find detailed technical specifications for our entire range of Manual Filter Valves in the comprehensive table below. Easily compare models to select the perfect component for your system.
| Image | Model | Inlet | Outlet | Drain | Base | Riser Pipe | Water Capacity | Tank Diameter Range |
|---|---|---|---|---|---|---|---|---|
|
|
1F02B | 3/4F | 3/4F | 3/4F | 2.5-8NPSM | 1.05OD | 2m³/h | 6-10 |
|
|
1F04B | 1F | 1F | 1F | 2.5-8NPSM | 1.05OD | 4m³/h | 6-12 |
Note: F: Female; OD: Outer Diameter.
Empower Your Water System with Aquatechvina!
Contact our sales team for a custom quote or download the full technical specifications for your project.
