Smart Automatic Valves 2m³/h
The Next Generation of Smart Water Control.
Experience effortless water treatment with ATV’s 2m³/h Smart Automatic Valves. Featuring intelligent control, automated cycles, and smart alerts, these valves deliver consistent performance and peace of mind for modern filtration and softening systems.
Intelligent Features
Applications
A Detailed Look: Smart Valve Series 2m³/h

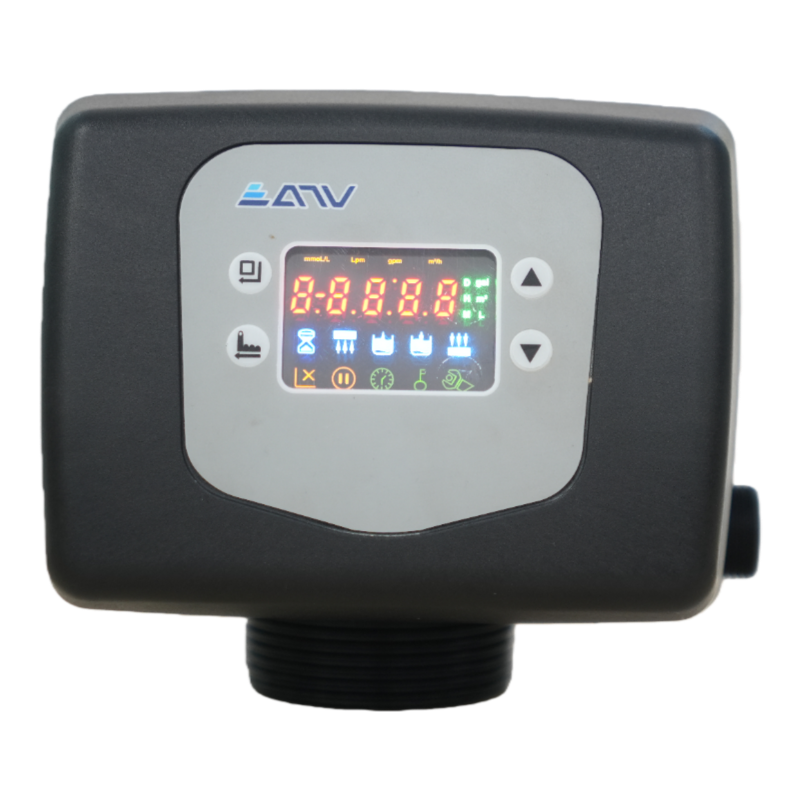

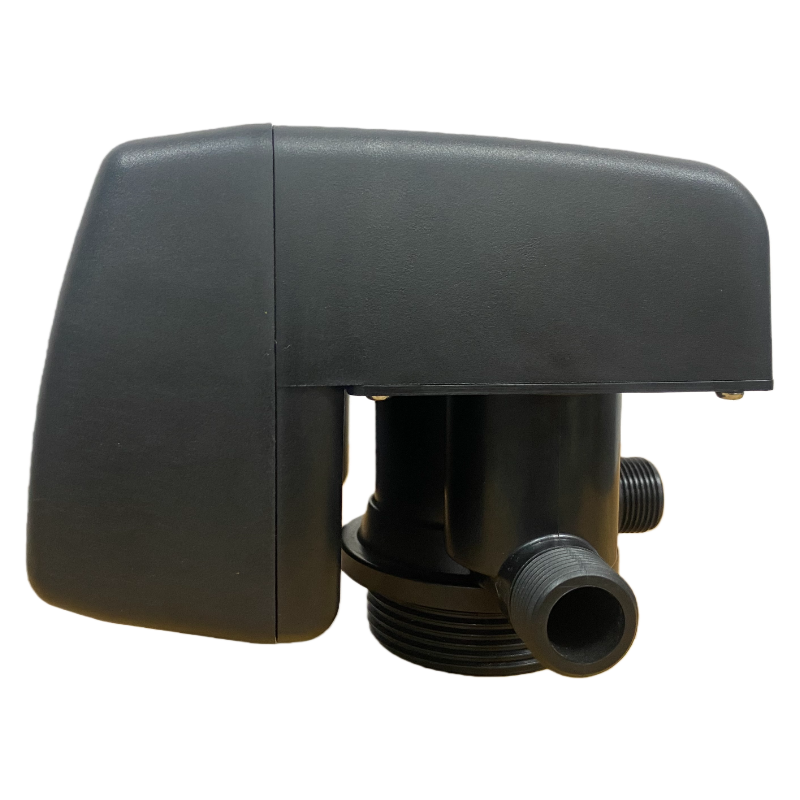

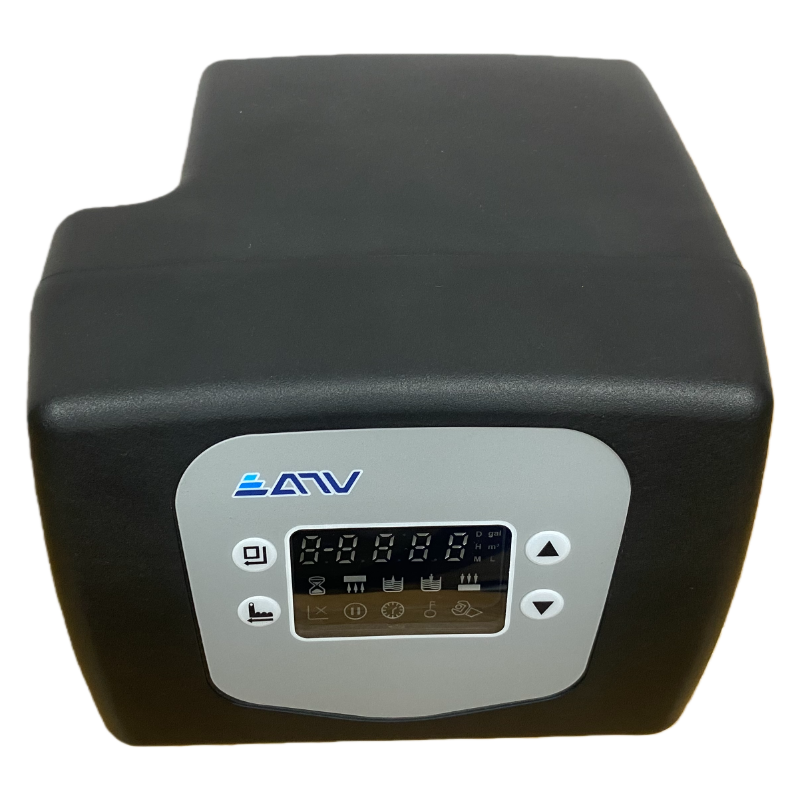

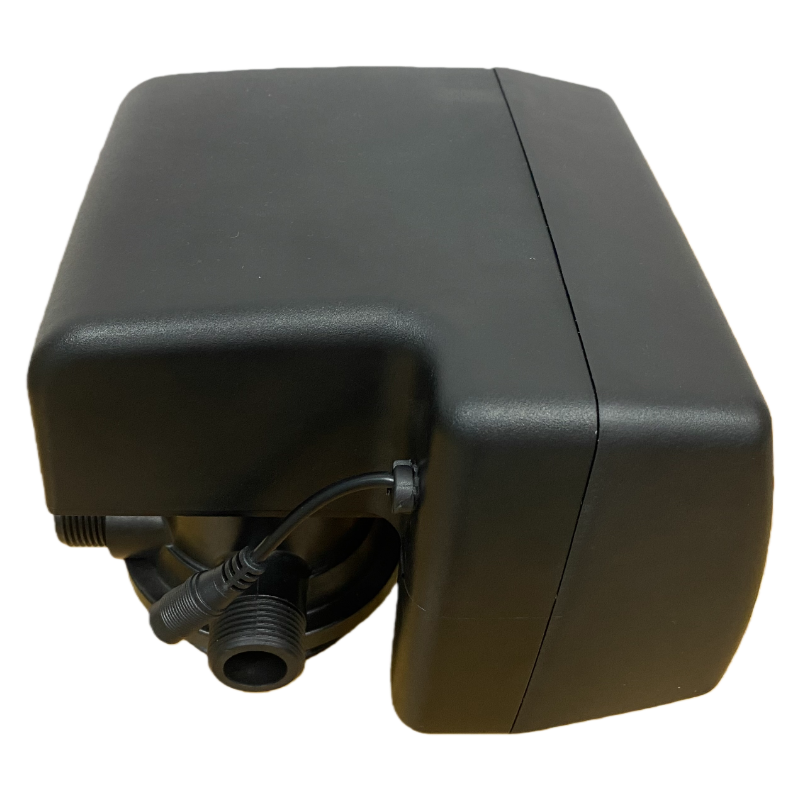

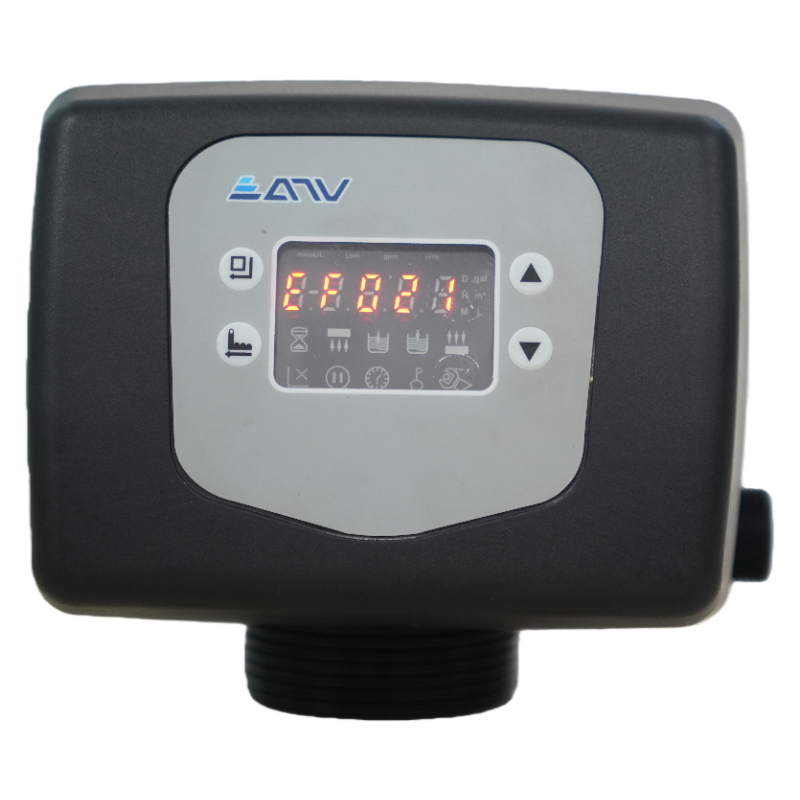

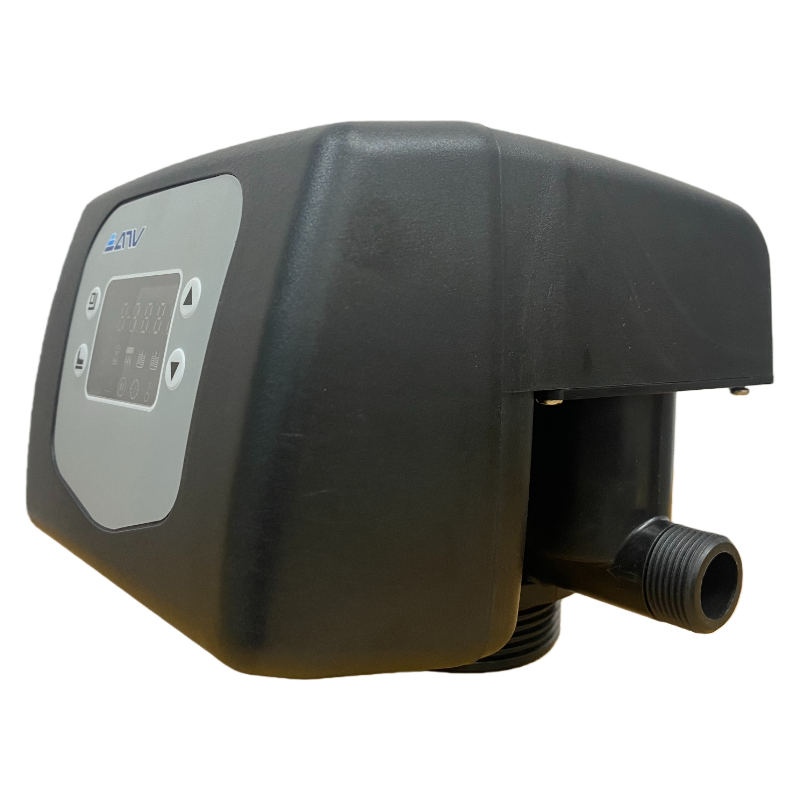

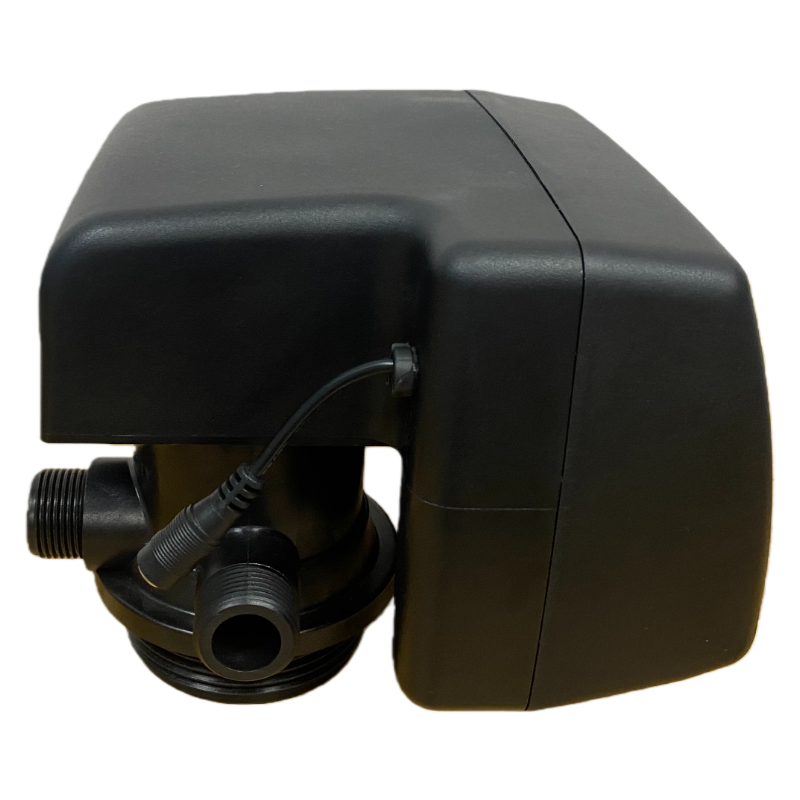

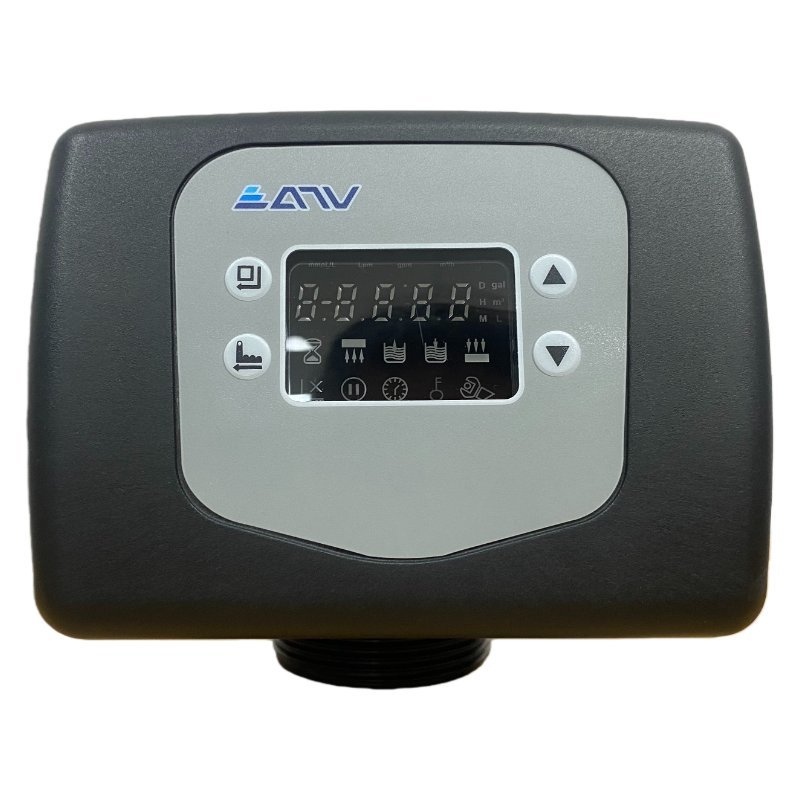

Model: EF021-N

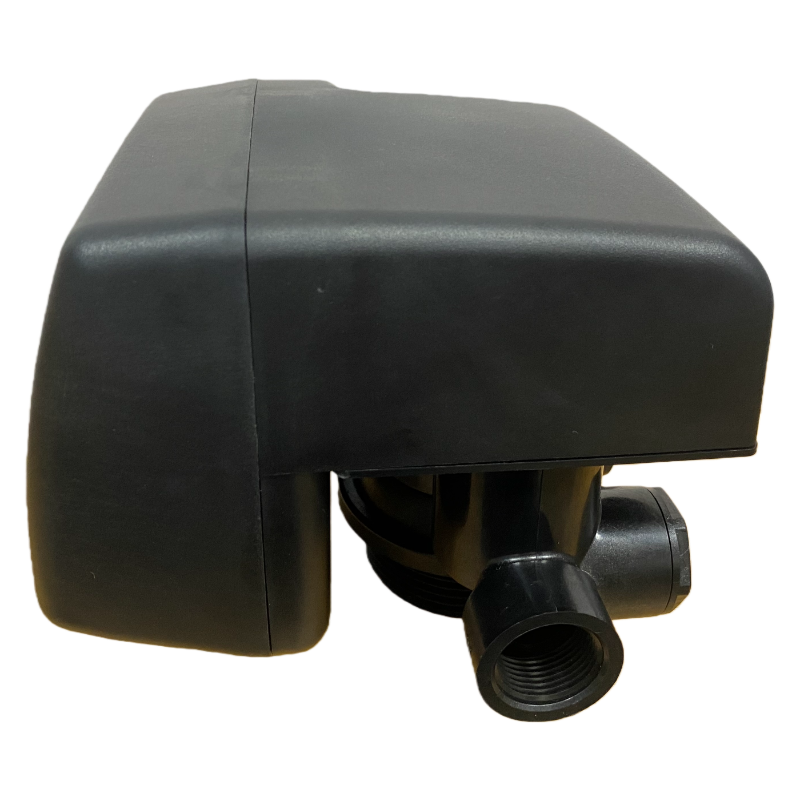

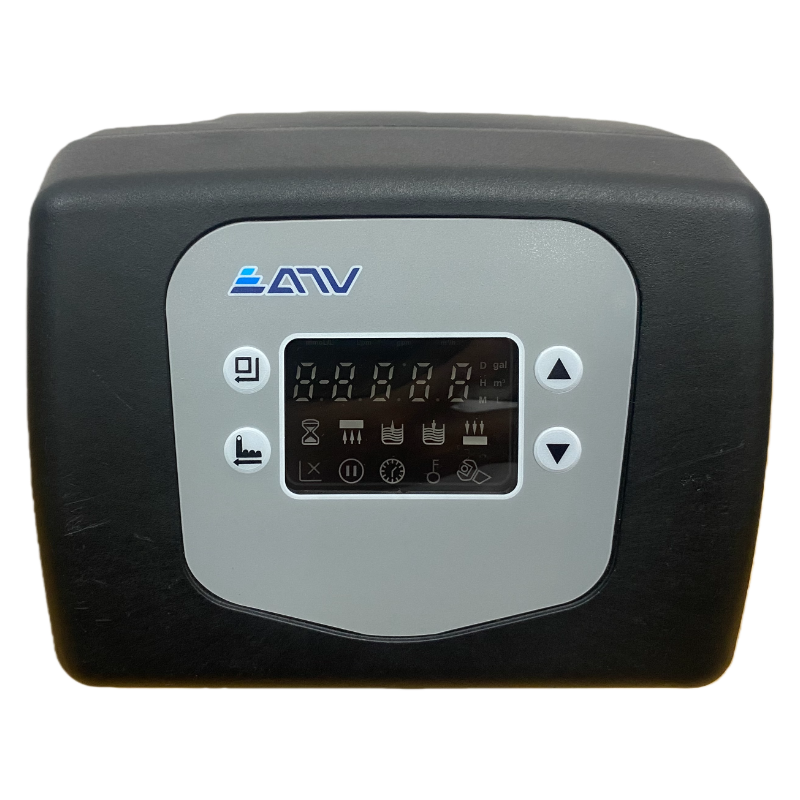

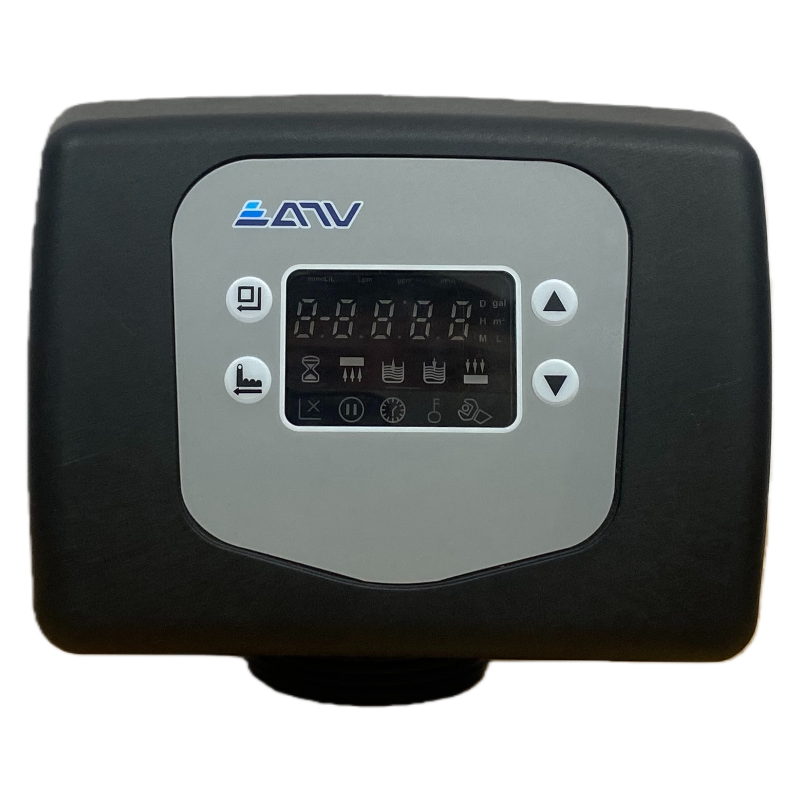

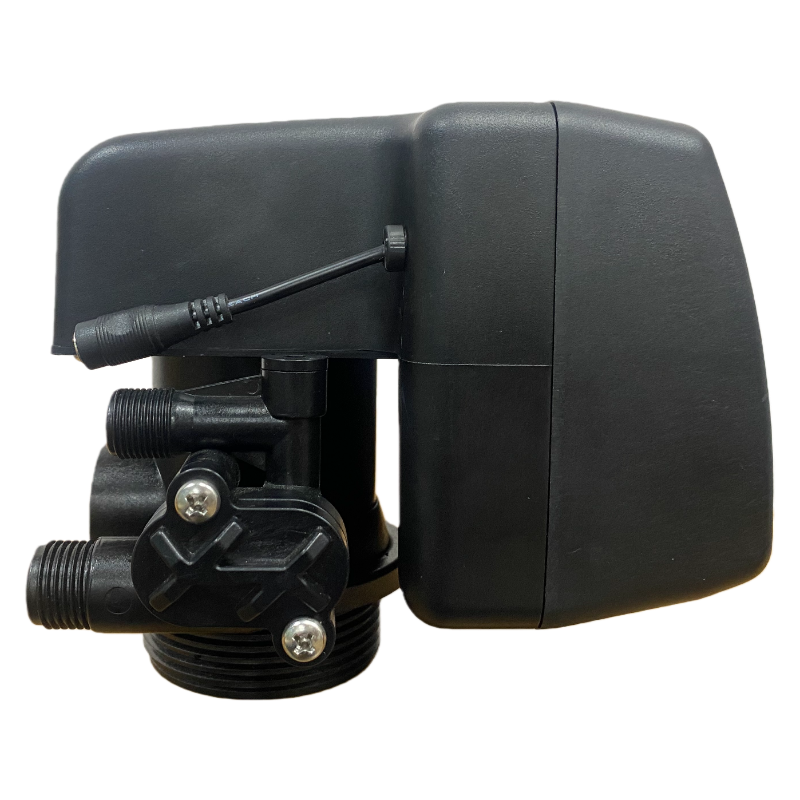

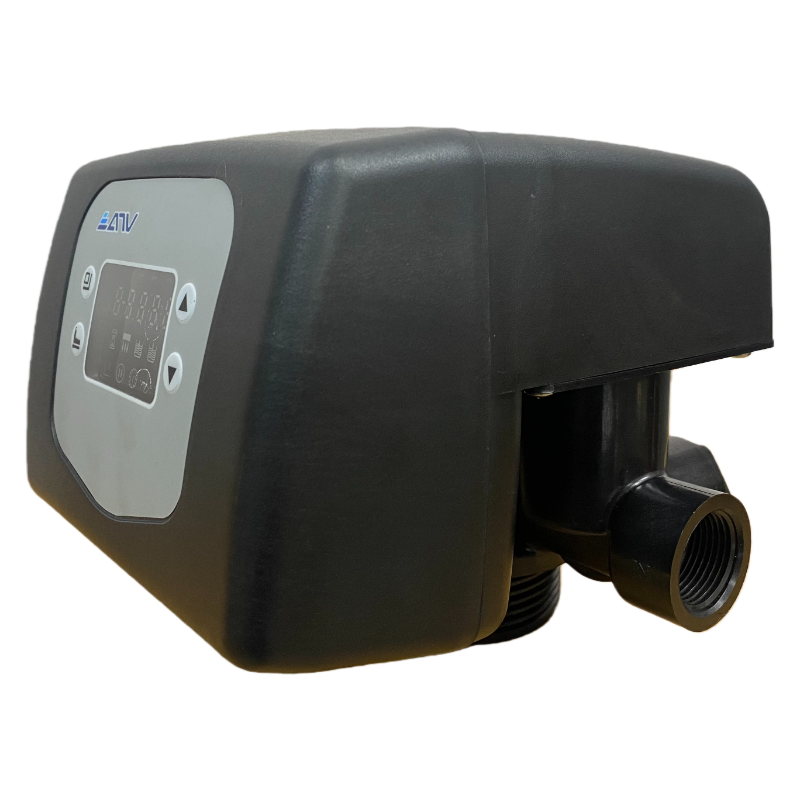

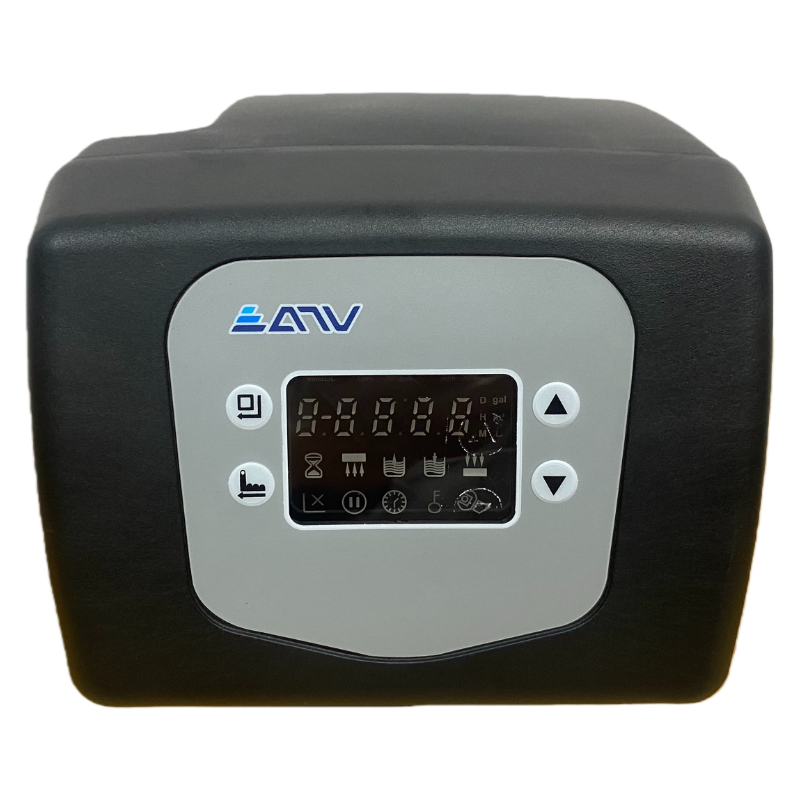

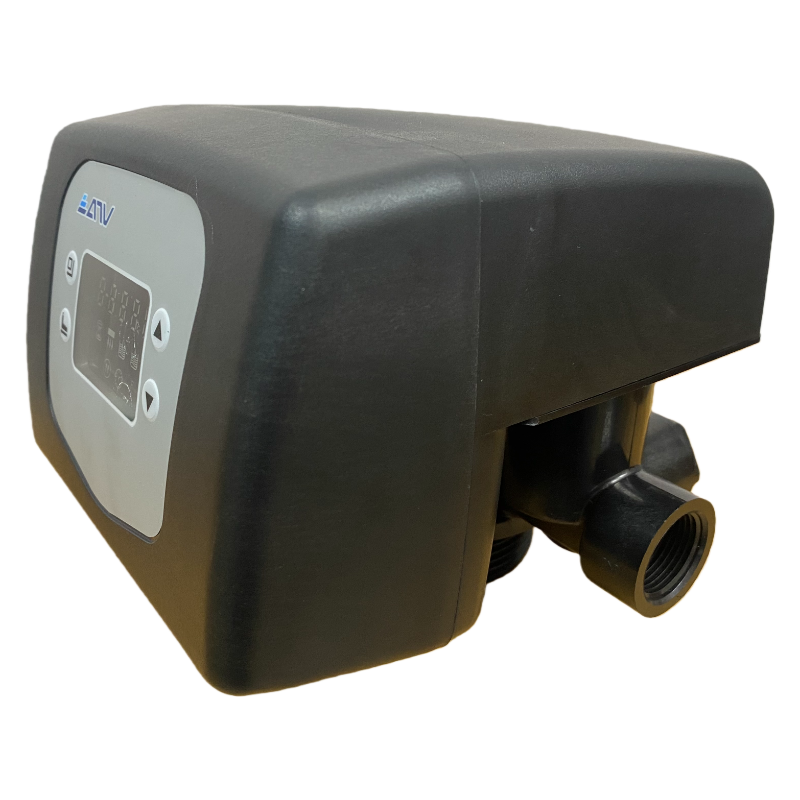

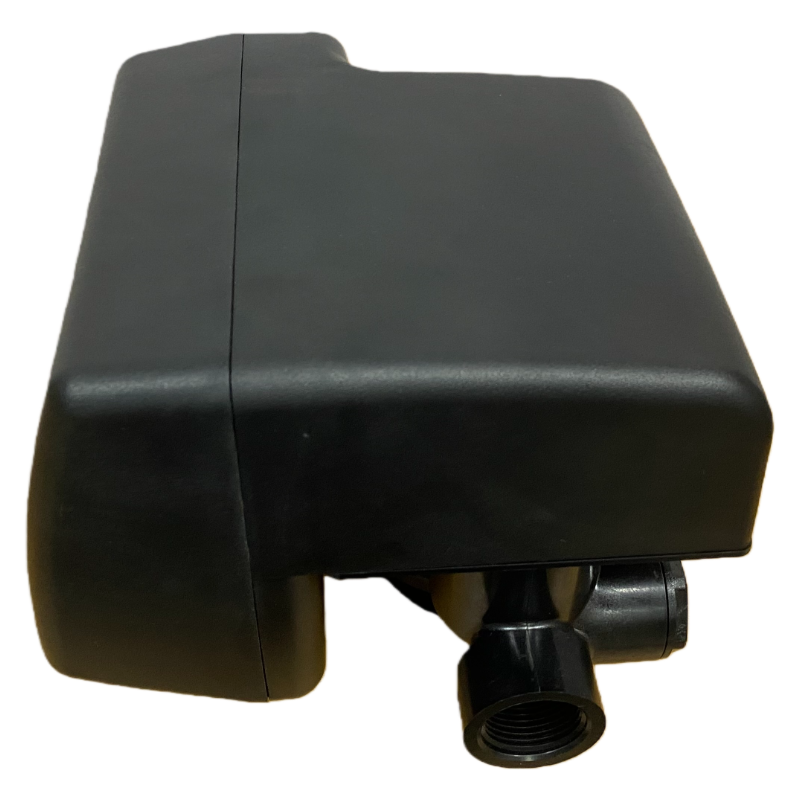

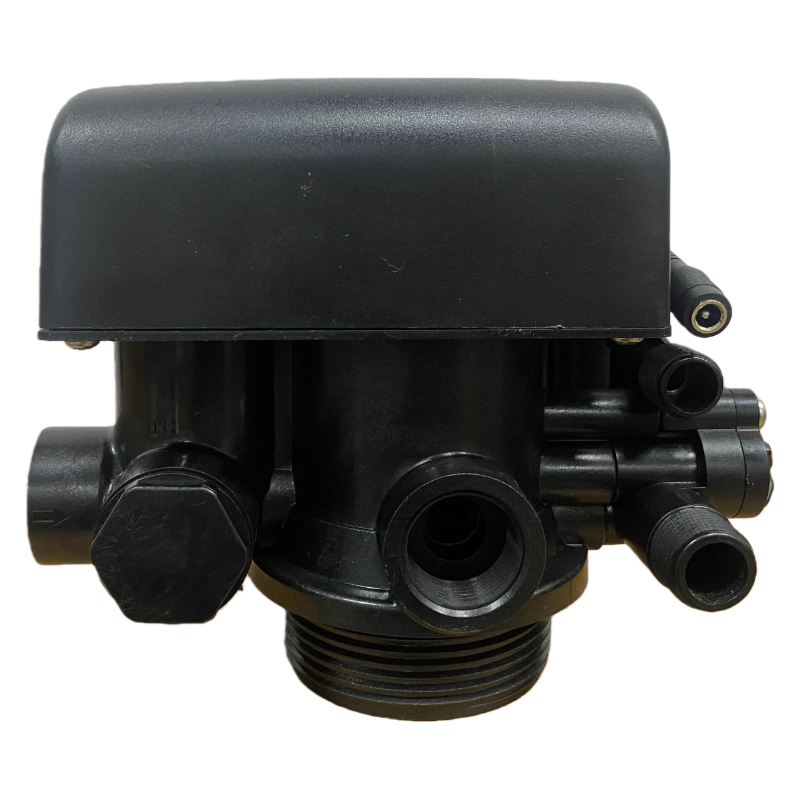

Model: ES021-N & ES023-N

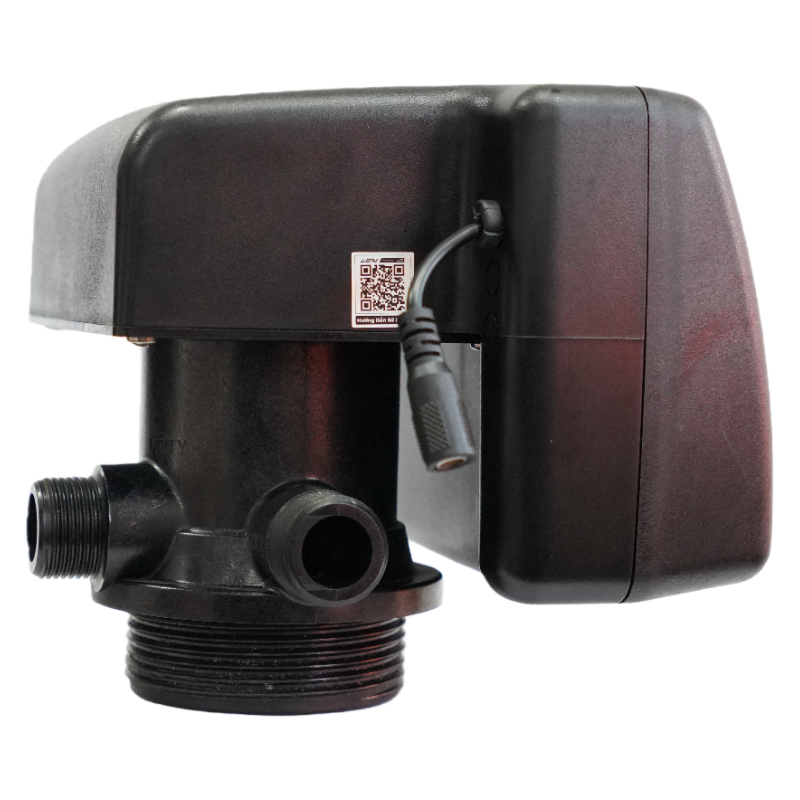

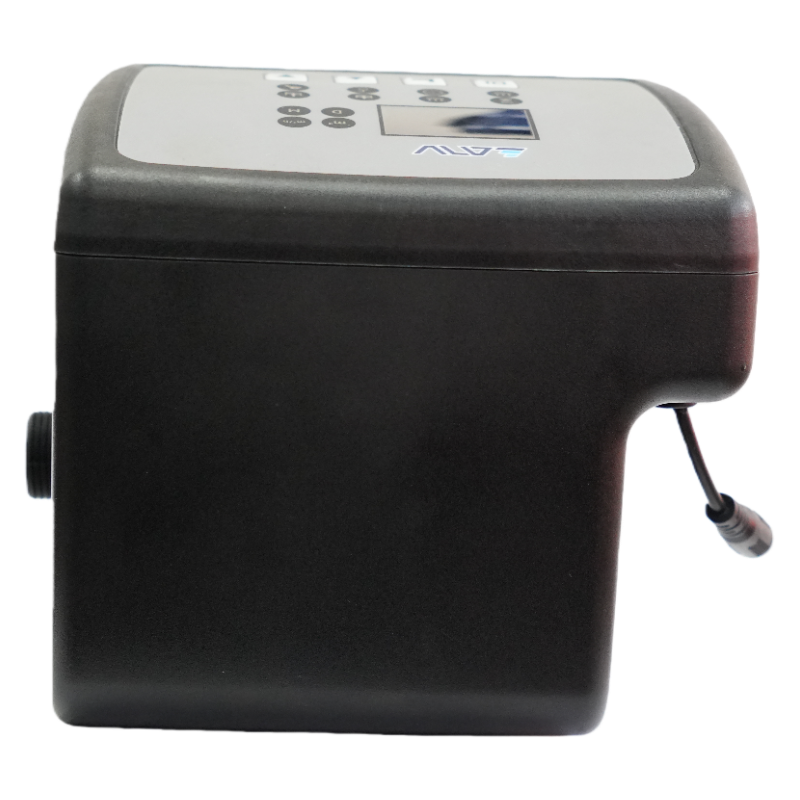

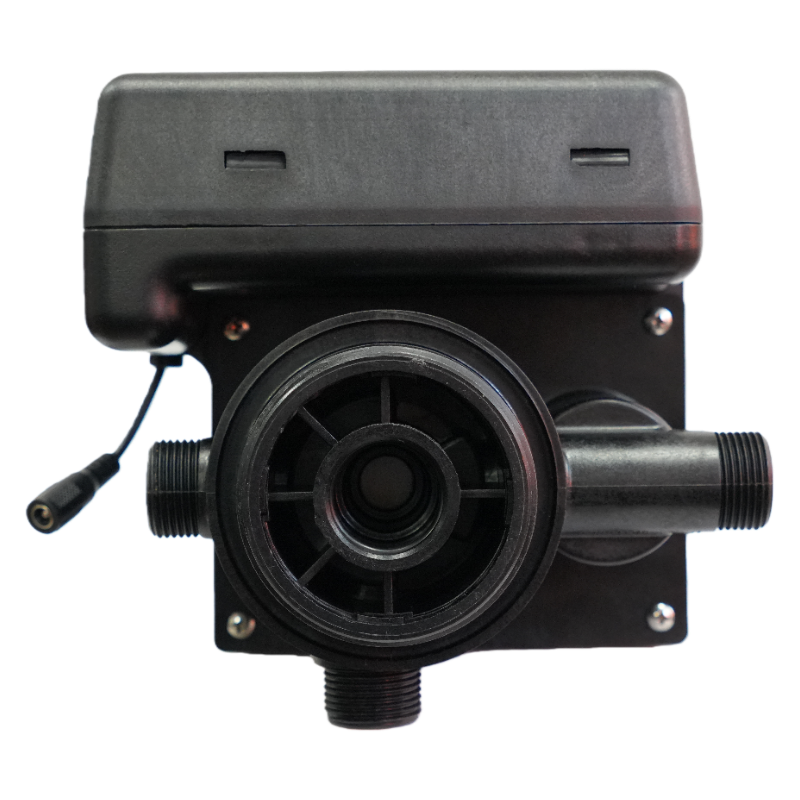

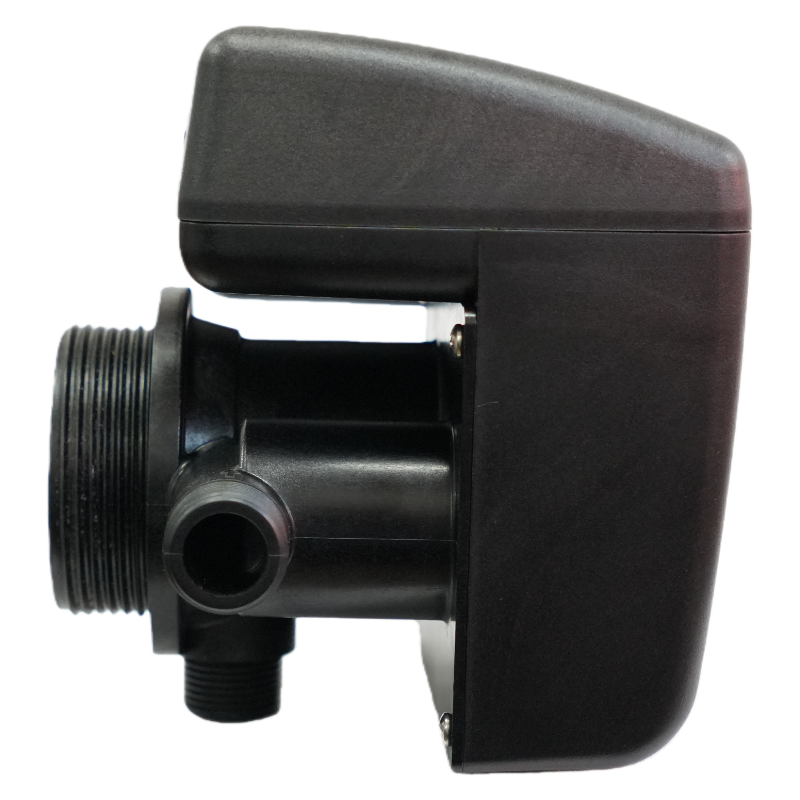

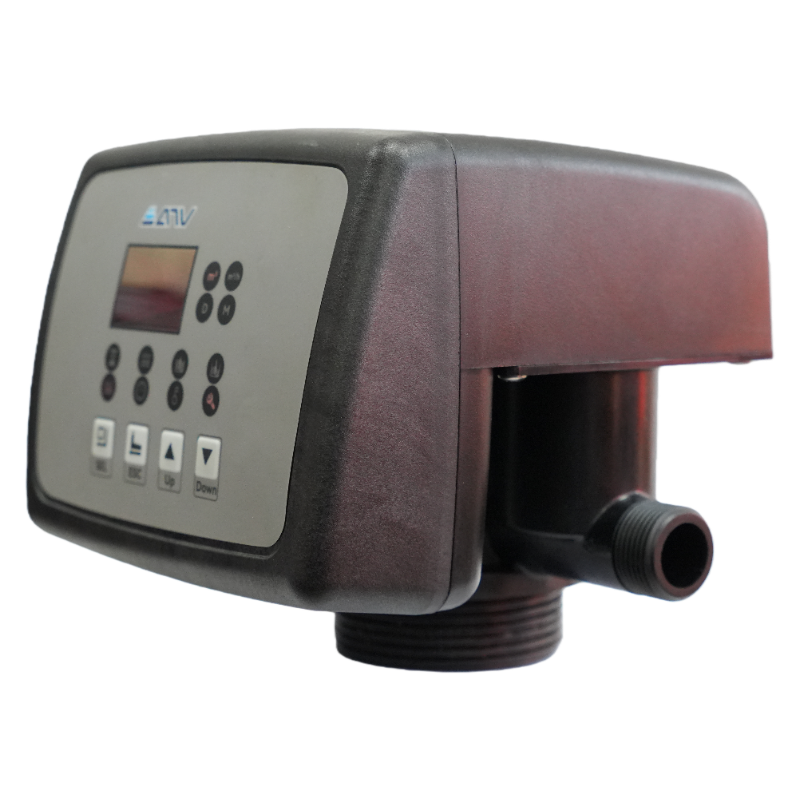

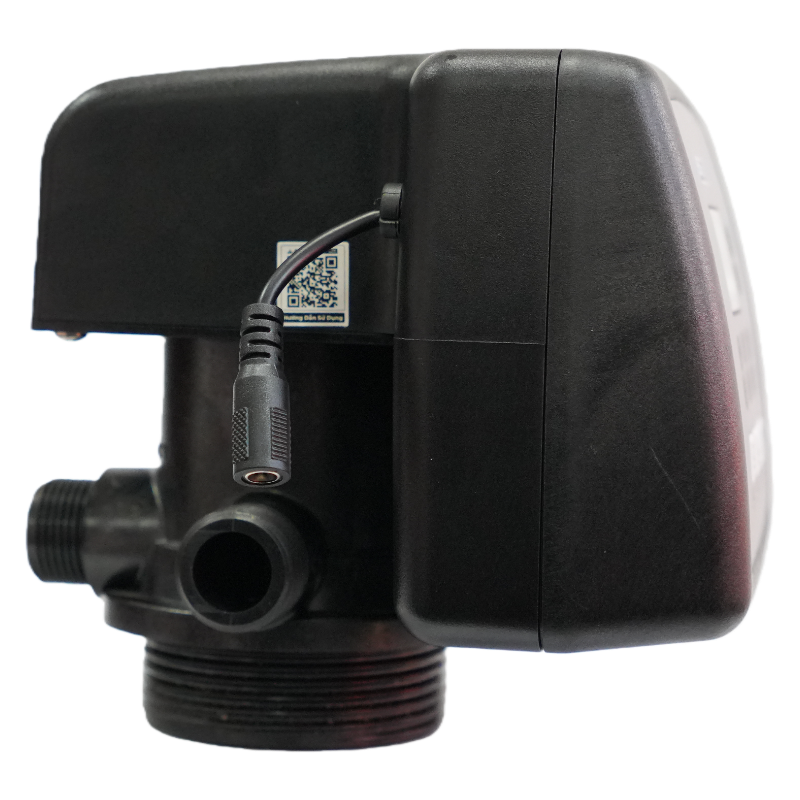

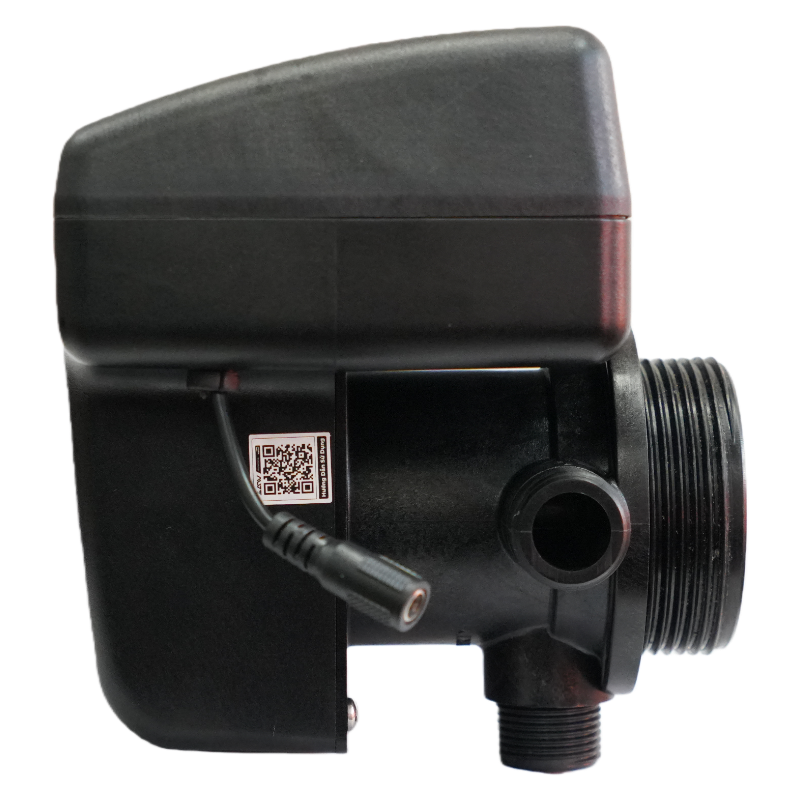

Model: EF021-B

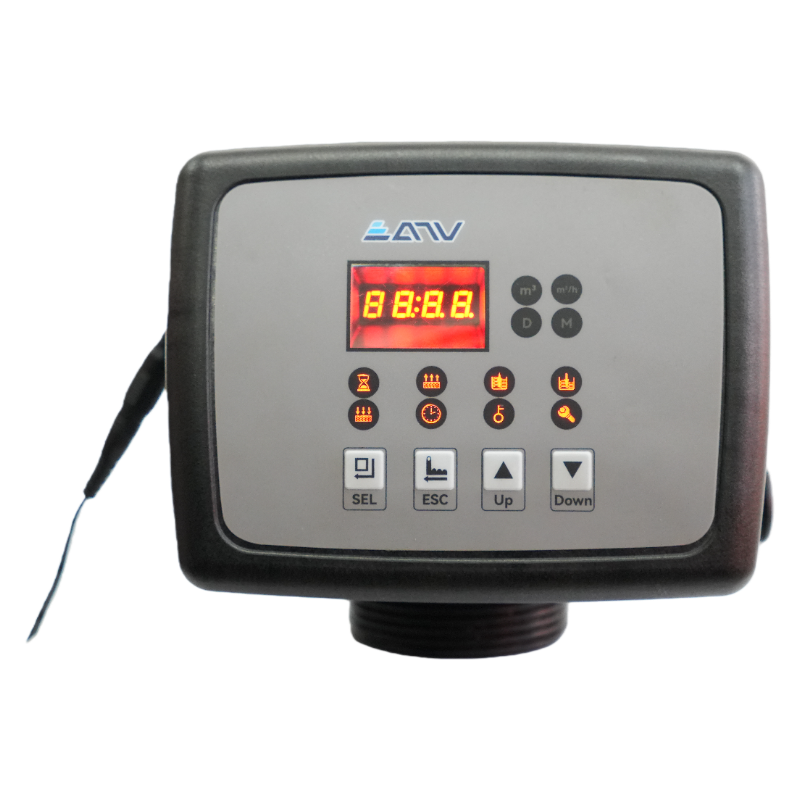

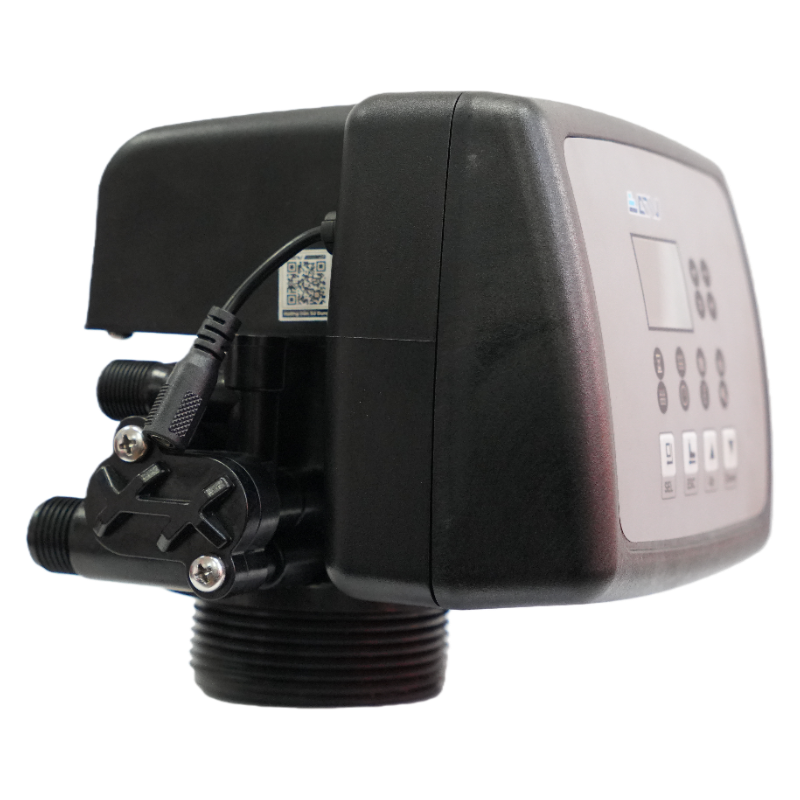

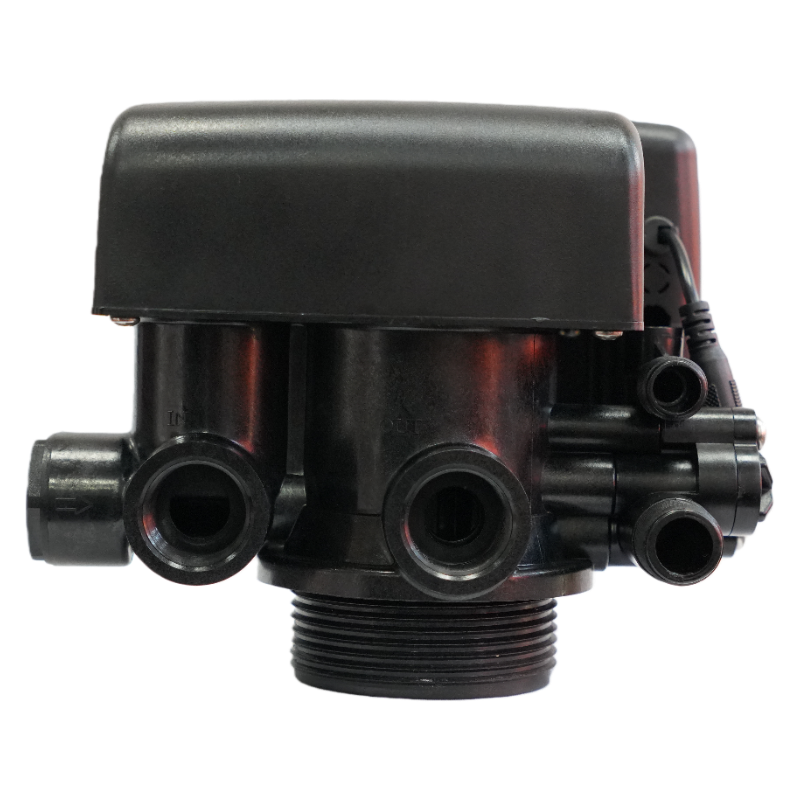

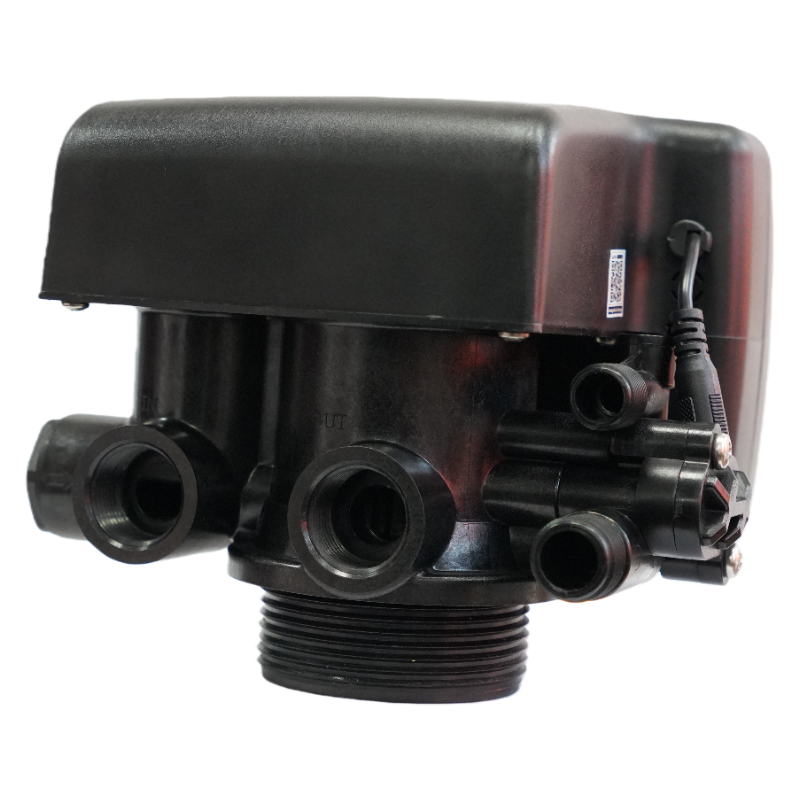

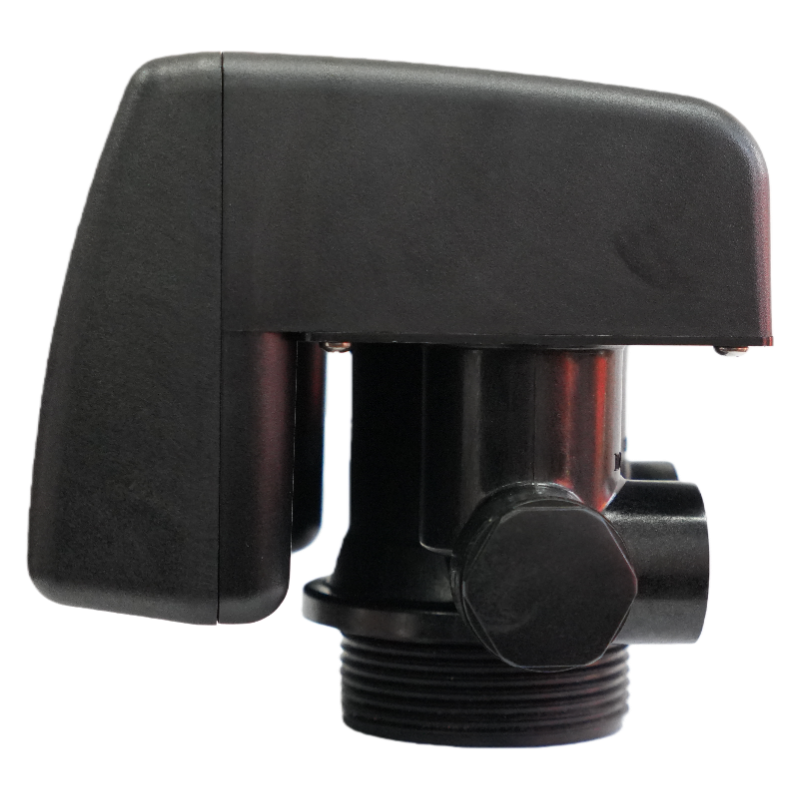

Model: ES021-B
Technical Specifications Comparison
Find detailed technical specifications for our entire range of 2m³/h Smart Automatic Valves. Easily compare models to select the perfect component for your system.
| Image | Product Model | Inlet | Outlet | Drain | Base | Brine Tank Connector | Riser Pipe | Water Capacity | Tank Diameter Range for Filter |
|---|---|---|---|---|---|---|---|---|---|
|
|
EF021-N | 3/4" M | 3/4" M | 3/4" M | 2.5" - 8NPSM | - | 1.05" OD | 2 m³/h | 6" ~ 10" |
|
|
ES021-N | 3/4" F | 3/4" F | 1/2" M | 2.5" - 8NPSM | 3/8" M | 1.05" OD | 2 m³/h | 6" ~ 12" |
|
|
ES023-N | 3/4" F | 3/4" F | 1/2" M | 2.5" - 8NPSM | 3/8" M | 1.05" OD | 2 m³/h | 6" ~ 12" |
|
|
EF021-B | 3/4" M | 3/4" M | 3/4" M | 2.5" - 8NPSM | - | 1.05" OD | 2 m³/h | 6" ~ 10" |
|
|
ES021-B | 3/4" F | 3/4" F | 1/2" M | 2.5" - 8NPSM | 3/8" M | 1.05" OD | 2 m³/h | 6" ~ 12" |
Note: F: Female; M: Male; OD: Outer Diameter.
Empower Your Water System with Aquatechvina!
Contact our sales team for a custom quote or download the full technical specifications for your project.
